Drone payload integration: interface control documents and fit checks

Payload integration failures are rarely caused by incompetent engineers. They are caused by assumptions that were never written down. The sensor vendor assumed the customer would provide the mounting adapter. The airframe vendor assumed the payload power draw was steady-state, not impulsive. The software team assumed the data link had enough bandwidth for the frame rate needed. None of these assumptions were wrong on their own. Together they produce a payload that does not fit, a power system that brownouts under load, and a data link that drops frames at the worst moment.

An interface control document, or ICD, is the engineering instrument that converts assumptions into commitments. It defines every boundary between the payload and the host platform: the mechanical envelope the payload must fit within, the electrical power rails available, the connector pinout, the data protocol and baud rate, the thermal load the payload will add to the airframe, and the center-of-gravity shift that payload installation produces. When both the payload developer and the platform integrator sign the ICD, any deviation from its specifications becomes a traceable change, not an informal workaround.

Mechanical interface definition should begin at the earliest possible stage of payload development. The mounting footprint, in terms of hole pattern, torque specifications, and material compatibility, should be fixed before the payload chassis is designed. Retrofitting a mounting solution onto a finished payload enclosure typically requires compromises in structural rigidity, cable routing clearance, and access to service ports. Starting with the interface constraints and designing the payload around them reduces integration rework by a significant margin.

Electrical interface definition covers more ground than a pinout table. The ICD should specify the nominal and peak current draw of the payload at each operating mode, the inrush current at power-on, the acceptable voltage range including transient tolerance, the polarity protection method, and the behavior of the payload during a momentary power interruption. UAV power systems are subject to voltage transients during motor spin-up and load shedding events. A payload that resets or enters an undefined state during these transients creates a compounding safety problem during a mission phase that already has elevated risk.

Data interface definition has become more complex as payloads have evolved from simple video outputs to multi-stream sensor packages with onboard processing. Ethernet, USB, serial, and proprietary digital video links each carry different latency, bandwidth, and EMC characteristics. The ICD should specify the protocol version, the maximum cable run length within the airframe, the shielding requirement, and the behavior when the link is interrupted. If the payload has an onboard computer that communicates with a ground station rather than the autopilot, the communication architecture, including encryption, authentication, and fallback modes, should be defined in the ICD explicitly.

Thermal interface considerations are often deferred until integration testing reveals a problem. A payload that adds significant heat load to an enclosed airframe bay raises the ambient temperature experienced by flight electronics, battery management systems, and other payloads sharing the same volume. The ICD should specify the maximum surface temperature of the payload enclosure, the airflow requirements if forced cooling is expected, and the duty cycle limitations if the payload generates heat intermittently. Thermal mapping during ground testing at the highest anticipated ambient temperature validates these parameters before the aircraft is in the air.

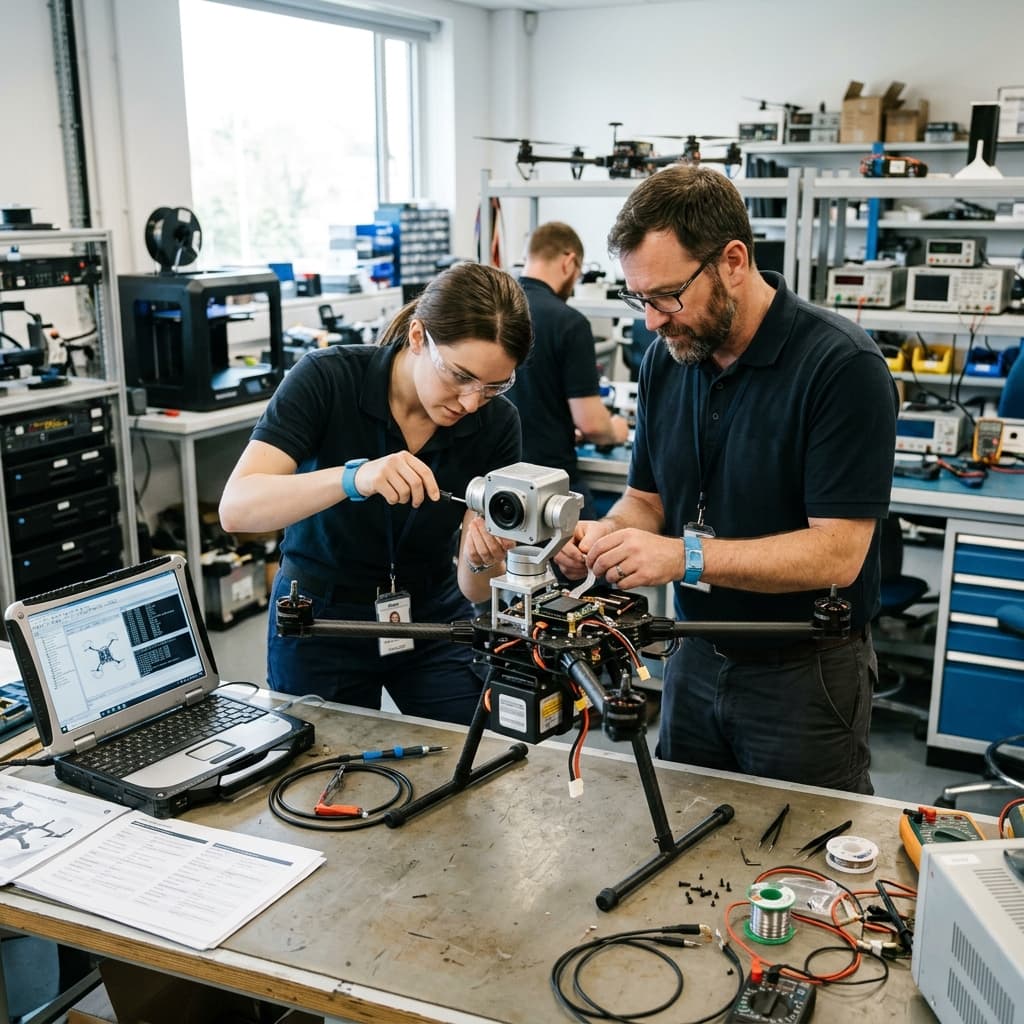

The fit check process translates the ICD into physical evidence. A fit check is a scripted sequence of measurements and observations performed with the actual hardware in the configured state it will occupy during operations. It is not a bench test of the payload in isolation; it is a systematic confirmation that the payload and the airframe together meet every interface requirement in the ICD. Each line item in the fit check procedure should reference the corresponding ICD specification so that any deviation is immediately traceable to a specific requirement, not just noted as a general observation.

Cable management inside UAV airframes deserves specific attention during fit checks. Cables that are routed too close to motor wiring pick up electromagnetic interference that can corrupt sensor data or cause spurious control inputs. Cables that are not adequately secured can move during flight and create intermittent connections or mechanical interference with moving parts. The fit check procedure should include a functional test of the payload with the aircraft in powered mode and motors running at representative speeds, specifically to reveal EMC and vibration effects that are invisible on the bench.

Center-of-gravity verification is a mandatory fit check deliverable for any payload that represents more than a small fraction of the airframe's maximum takeoff weight. Even a correctly balanced payload installed at the wrong longitudinal station can shift the center of gravity enough to require autopilot trim adjustments and reduce the flight envelope margin. The fit check should include a physical weight and balance measurement in the exact configuration that will fly, with the payload in its operating state, not a representative mass mockup.

Software handshaking between the payload and the autopilot is the final integration layer that must be verified before flight. The ICD should define the initialization sequence, the health status messages the payload exchanges with the autopilot, and the actions the autopilot takes if payload health status degrades or is lost. A payload that fails silently during a mission, with no indication to the ground station or autopilot, is far more dangerous than one that reports its failure mode and triggers a defined contingency response.

Once the ICD is ratified and the fit checks are complete, configuration management takes over. Any change to the payload, the airframe integration, or the software version on either side requires a formal change process that evaluates how the ICD is affected. Programs that skip this step after initial integration approval often discover, following a mission anomaly, that the configuration that flew was not the configuration that was qualified. Maintaining configuration control from the ICD through to the serialized record of each mission is the discipline that makes field engineering reproducible.
